ORPHEO TOUCH
MULTIMEDIA GUIDE DESIGNED FOR SELF-GUIDED TOURS
High quality display
Easy to use
Robust
Immersive content
ORPHEO TOUCH
Discover our high-end multimedia guide

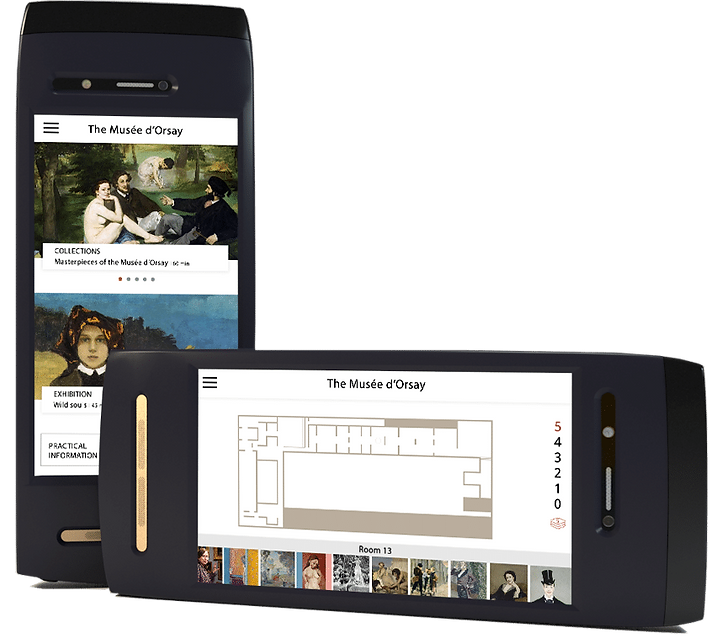

Our new multimedia touch guide, Orpheo Touch, is a state-of-the-art digital companion. Building on our previous guide system, the Touch combines the performance of an efficient smartphone with the robustness of an audio guide. It has a high-resolution colour screen and a clear, intuitive touchscreen interface. We have simplified the on-site management of the fleet of devices, making distribution and collection of devices easier than ever with the Orpheo EMM. The tours are interactive and fun: audio commentary, enriched texts, HD images, videos, 3D reconstructions, augmented reality, virtual tours, games, indoor and outdoor geo-located maps, video synchronisation… and much more.



ADVANCED TECHNOLOGY
Automatic triggering
Intuitive interface
Video synchronisation
Remote device management software
3D interactive map
AUGMENTED REALITY
The best Android AR experience
360° immersion & Binaural sound

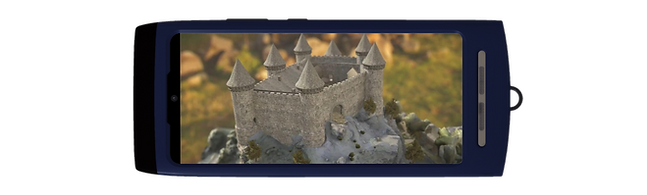

Open a door to a 3D World

A digital companion at the cutting edge of technology
Multi audio output mode
The touch offers 3 different audio experiences:
-
Earpiece output recommended for museums or indoor tours;
-
Bottom loudspeaker used mainly for outdoor sites and national parks;
-
Dual headphone jack on the same unit, useful for peaking hours/days.

Fast charging technology
The Touch charging connector was designed using more than 25 years of research in audio guide system design manufacturing.
The connector ensures a high mechanical hold and a fast charging speed (10 W). The device can be fully charged in less than 3 hours and therefore offers a high utilisation rate for museum staff.

Smart battery management
The power manager of the Touch optimises the performance and longevity of the battery.
Thanks to our custom fonctionality, battery life is significantly extended compared to other commercial products. Even after 500 charge cycles. The battery has 4000 mAh capacity and offers up to 18 hours of continuous autonomy running a tour app.
Safety
Safety is a key component especially in public environments.
The Orpheo Touch combines 8 safety checkpoints: temperature protection, short circuit protection, reset protection, input over voltage protection, output over voltage protection, OTG protection, output over current protection and battery TCO protection.
ORPHEO EMM
A software platform to manage your devices in the cloud
To facilitate on-site operations, we offer a tool that allows you to easily manage your device fleet on site or remotely. With a few clicks, you can deploy the visit app to all your devices simultaneously. From your Internet connected computer, you can access the interface at any time to control your multimedia guides, schedule software or content updates or obtain detailed statistics.


Updating the application and its contents
Registering new devices
Scheduling updates
Real-time monitoring and statistics
(number of updated devices, date of last connection...)
Configuration of the anti-forgetting alarm
Parameter settings
(sound level, sleep mode, brightness...)
Technical overview
Display
-
Super AMOLED screen — Size 6.4’’ — Colour Depth 16M
-
High resolution colour display — 1080 x 2400 (FHD+)
Camera & sensors
-
Camera 64 Mpx — Autofocus
-
Accelerometer, gyroscope, compass, ambient lighting
Autonomy
-
Li-Ion Battery — 5000 mAh
-
Up to 18 hours of navigation
-
Fast charging technology (about 3 hours)
Synchro & Triggering
-
GPS — Wifi (5 Ghz) — Bluetooth v5.1
-
Infrared communication — RFID (device tracking)
-
Video synchronisation (time code, lip sync)
-
Synchronisation with other systems (Show Controllers)
Accessibility
-
Compatible with induction loop — hearing impaired
-
Sign Language tours / Audiodescription (visually impaired)
-
Lanyard (neck strap) and Voice Over
Casing
-
ABS shock resistant plastic
-
Weatherproof and fireproof casing
Output
-
2 built-in High Quality loudspeakers
-
2 stereo audio jacks — 3.5 mm
Charging
-
16 charging slots per charger
-
2 charger formats available:
– DESK: standard free-standing charger
– BAY: 19’’ compatible, rackable into existing furniture
Core & Memory
-
Android 12 operating system
-
Chipset Exynos 1280 — CPU Octa-Core-5nm 2.4Ghz
-
128 GB storage and 6 GB RAM
-
Up to 1 TB on μSD card
Software
-
MyOrpheo Studio CMS for creating/editing the tour app
-
EMM solution (enterprise mobility management) for easy management of your batch of devices
Touch
-
19 x 7.7 x 1.7 cm
-
Weight: 196g

Charger
-
45 x 19.6 x 9 cm
-
Weight: 2.5kg
